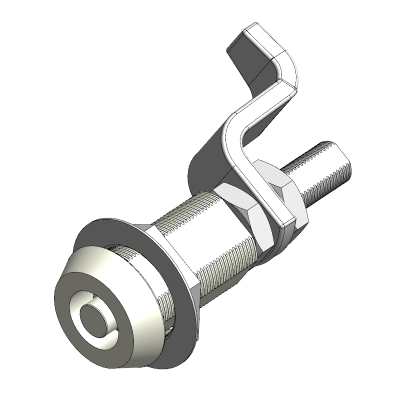

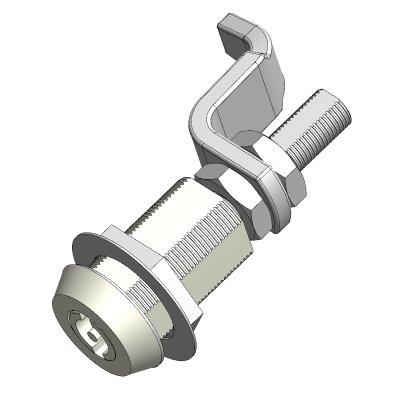

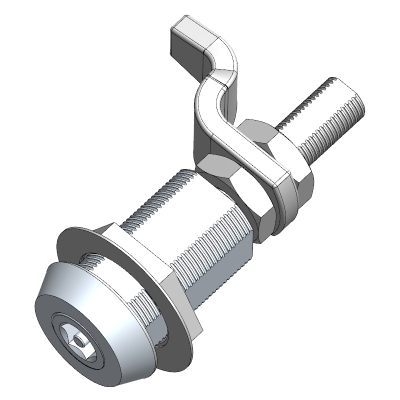

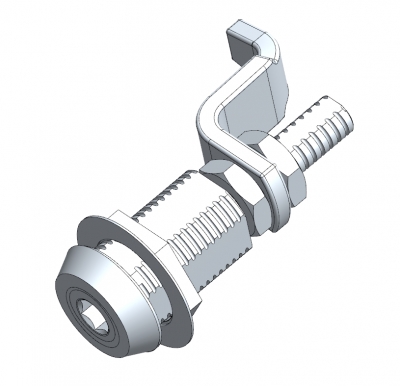

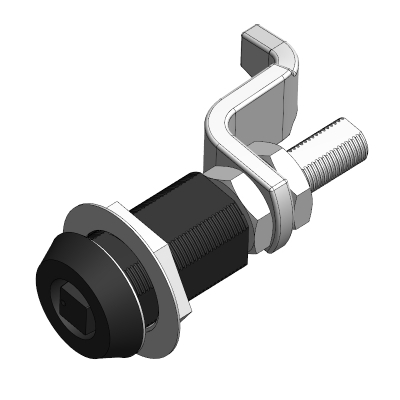

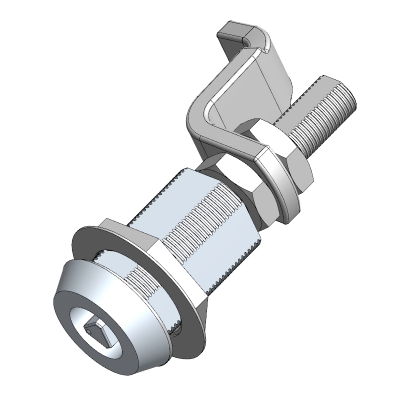

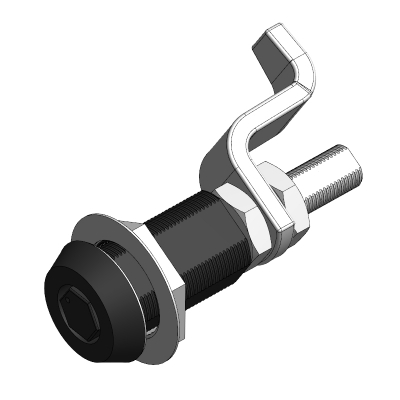

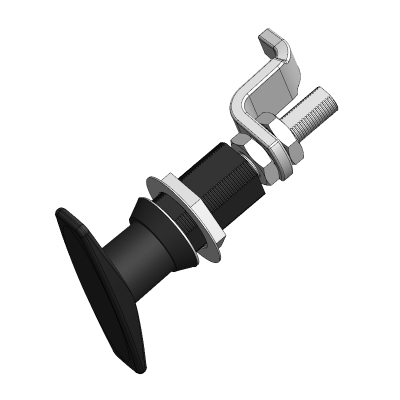

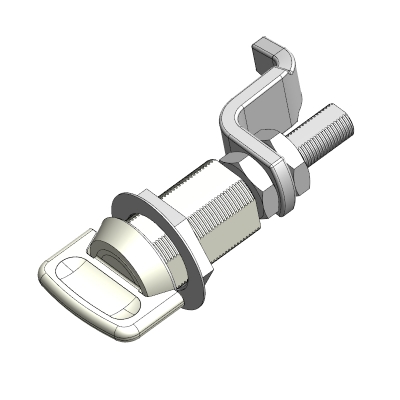

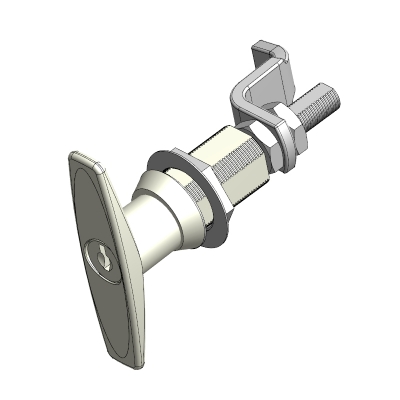

虎钳压缩式门锁03型

以上设计和拍摄图片的颜色可能和实际略有差异，仅供参考

虎钳压缩式门锁03型

产品参数

制式	公制
进入限制	无限制

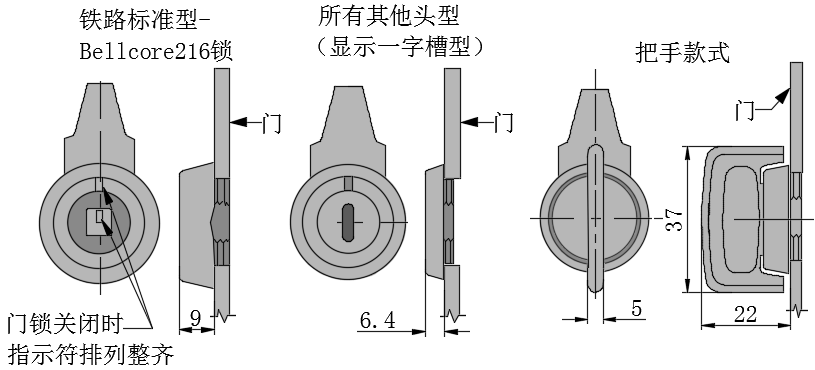

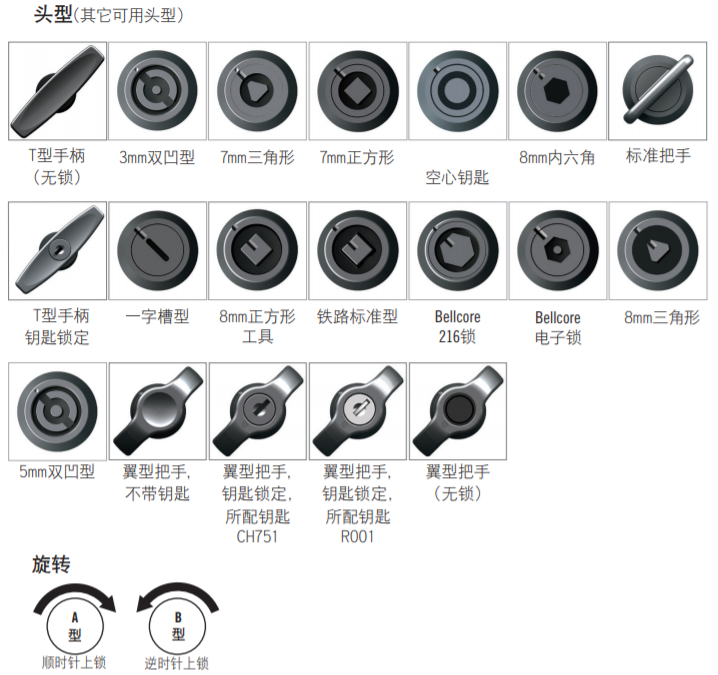

锁头形式	Bellcore216
表面处理	镀铬
旋转方向	顺时针
锁材质	锌合金
描述	虎钳压缩式门锁03型,

规格

SKU	规格	价格/包装
EV195-01030001	7MM三角形
EV195-01030002	7MM三角形
EV195-01030003	7MM三角形
EV195-01030004	11.4-27.2/66.3-76.2
EV195-01004299	11.4-27.2/66.3-76.2
EV195-01004300	11.4-27.2/66.3-76.2
EV195-01004301	11.4-27.2/66.3-76.2
EV195-99000032	11.4-27.2/66.3-76.2
EV195-99000033	11.4-27.2/66.3-76.2
EV195-01004308	11.4-27.2/66.3-76.2
EV195-99000038	11.4-27.2/66.3-76.2
EV195-99000039	11.4-27.2/66.3-76.2
EV195-01004311	11.4-27.2/66.3-76.2
EV195-01000030	11.4-27.2/66.3-76.2
EV195-01000036	11.4-27.2/66.3-76.2
EV195-01004317	11.4-27.2/66.3-76.2
EV195-01004318	11.4-27.2/66.3-76.2
EV195-01004319	11.4-27.2/66.3-76.2
EV195-01004326	11.4-27.2/66.3-76.2
EV195-01004327	11.4-27.2/66.3-76.2
EV195-01004328	11.4-27.2/66.3-76.2
EV195-01004335	11.4-27.2/66.3-76.2
EV195-01004336	11.4-27.2/66.3-76.2
EV195-01004337	11.4-27.2/66.3-76.2
EV195-01004343	11.4-27.2/66.3-76.2
EV195-01004344	11.4-27.2/66.3-76.2
EV195-01004345	11.4-27.2/66.3-76.2
EV195-01004352	11.4-27.2/66.3-76.2
EV195-01004353	11.4-27.2/66.3-76.2
EV195-01004354	11.4-27.2/66.3-76.2
EV195-01004361	11.4-27.2/66.3-76.2
EV195-01004362	11.4-27.2/66.3-76.2
EV195-01004363	11.4-27.2/66.3-76.2
EV195-01004370	11.4-27.2/66.3-76.2
EV195-01004371	11.4-27.2/66.3-76.2
EV195-01004372	11.4-27.2/66.3-76.2
EV195-01004379	11.4-27.2/66.3-76.2
EV195-01004380	11.4-27.2/66.3-76.2
EV195-01004381	11.4-27.2/66.3-76.2
EV195-01004388	11.4-27.2/66.3-76.2
EV195-01004389	11.4-27.2/66.3-76.2
EV195-01004390	11.4-27.2/66.3-76.2
EV195-99000044	11.4-27.2/66.3-76.2
EV195-99000045	11.4-27.2/66.3-76.2
EV195-01004397	11.4-27.2/66.3-76.2
EV195-01004400	11.4-27.2/66.3-76.2
EV195-01004401	11.4-27.2/66.3-76.2
EV195-01004402	11.4-27.2/66.3-76.2
EV195-01004410	11.4-27.2/66.3-76.2
EV195-01004419	11.4-27.2/66.3-76.2
EV195-01004428	11.4-27.2/66.3-76.2
EV195-01004437	11.4-27.2/66.3-76.2
EV195-01004445	11.4-27.2/66.3-76.2
EV195-01004446	11.4-27.2/66.3-76.2
EV195-01004447	11.4-27.2/66.3-76.2
EV195-01004454	11.4-27.2/66.3-76.2
EV195-01004455	11.4-27.2/66.3-76.2
EV195-01004456	11.4-27.2/66.3-76.2
EV195-01004463	11.4-27.2/66.3-76.2
EV195-01004464	11.4-27.2/66.3-76.2
EV195-01004465	11.4-27.2/66.3-76.2
EV195-01004472	11.4-27.2/66.3-76.2
EV195-01004473	11.4-27.2/66.3-76.2
EV195-01004474	11.4-27.2/66.3-76.2
EV195-01004481	11.4-27.2/66.3-76.2
EV195-01004482	11.4-27.2/66.3-76.2
EV195-01004483	11.4-27.2/66.3-76.2
EV195-01004490	11.4-27.2/66.3-76.2
EV195-01004491	11.4-27.2/66.3-76.2
EV195-01004492	11.4-27.2/66.3-76.2
EV195-01004499	11.4-27.2/66.3-76.2
EV195-01004500	11.4-27.2/66.3-76.2
EV195-01004501	11.4-27.2/66.3-76.2
EV195-01004508	11.4-27.2/66.3-76.2
EV195-01004509	11.4-27.2/66.3-76.2
EV195-01004510	11.4-27.2/66.3-76.2
EV195-01004517	11.4-27.2/66.3-76.2
EV195-01004518	11.4-27.2/66.3-76.2
EV195-01004519	11.4-27.2/66.3-76.2
EV195-01004526	11.4-27.2/66.3-76.2
EV195-01004527	11.4-27.2/66.3-76.2
EV195-01004528	11.4-27.2/66.3-76.2
EV195-01004535	11.4-27.2/66.3-76.2
EV195-01004536	11.4-27.2/66.3-76.2
EV195-01004537	11.4-27.2/66.3-76.2
EV195-01004544	11.4-27.2/66.3-76.2
EV195-01004545	11.4-27.2/66.3-76.2
EV195-01004546	11.4-27.2/66.3-76.2
EV195-01004553	11.4-27.2/66.3-76.2
EV195-01004554	11.4-27.2/66.3-76.2
EV195-01004555	11.4-27.2/66.3-76.2
EV195-01004562	11.4-27.2/66.3-76.2
EV195-01004563	11.4-27.2/66.3-76.2
EV195-01004564	11.4-27.2/66.3-76.2
EV195-01004571	11.4-27.2/66.3-76.2
EV195-01004572	11.4-27.2/66.3-76.2
EV195-01004573	11.4-27.2/66.3-76.2
EV195-01004581	11.4-27.2/66.3-76.2
EV195-01004590	11.4-27.2/66.3-76.2
EV195-01004599	11.4-27.2/66.3-76.2
EV195-01004608	11.4-27.2/66.3-76.2
EV195-01030006	38.9-54.6
EV195-01004305	38.9-54.6
EV195-01004306	38.9-54.6
EV195-01004307	38.9-54.6
EV195-99000036	38.9-54.6
EV195-99000037	38.9-54.6
EV195-01004310	38.9-54.6
EV195-99000042	38.9-54.6
EV195-99000043	38.9-54.6
EV195-01004313	38.9-54.6
EV195-01004315	38.9-54.6
EV195-01004316	38.9-54.6
EV195-01004323	38.9-54.6
EV195-01004324	38.9-54.6
EV195-01004325	38.9-54.6
EV195-01004332	38.9-54.6
EV195-01004333	38.9-54.6
EV195-01004334	38.9-54.6
EV195-01004340	38.9-54.6
EV195-01004341	38.9-54.6
EV195-01004342	38.9-54.6
EV195-01004349	38.9-54.6
EV195-01004350	38.9-54.6
EV195-01004351	38.9-54.6
EV195-01004358	38.9-54.6
EV195-01004359	38.9-54.6
EV195-01004360	38.9-54.6
EV195-01004367	38.9-54.6
EV195-01004368	38.9-54.6
EV195-01004369	38.9-54.6
EV195-01004376	38.9-54.6
EV195-01004377	38.9-54.6
EV195-01004378	38.9-54.6
EV195-01004385	38.9-54.6
EV195-01004386	38.9-54.6
EV195-01004387	38.9-54.6
EV195-01004394	38.9-54.6
EV195-01004395	38.9-54.6
EV195-01004396	38.9-54.6
EV195-99000048	38.9-54.6
EV195-99000049	38.9-54.6
EV195-01004399	38.9-54.6
EV195-01004406	38.9-54.6
EV195-01004407	38.9-54.6
EV195-01004408	38.9-54.6
EV195-01004416	38.9-54.6
EV195-01004425	38.9-54.6
EV195-01004434	38.9-54.6
EV195-01004443	38.9-54.6
EV195-01004451	38.9-54.6
EV195-01004452	38.9-54.6
EV195-01004453	38.9-54.6
EV195-01004460	38.9-54.6
EV195-01004461	38.9-54.6
EV195-01004462	38.9-54.6
EV195-01004469	38.9-54.6
EV195-01004470	38.9-54.6
EV195-01004471	38.9-54.6
EV195-01004478	38.9-54.6
EV195-01004479	38.9-54.6
EV195-01004480	38.9-54.6
EV195-01004487	38.9-54.6
EV195-01004488	38.9-54.6
EV195-01004489	38.9-54.6
EV195-01004496	38.9-54.6
EV195-01004497	38.9-54.6
EV195-01004498	38.9-54.6
EV195-01004505	38.9-54.6
EV195-01004506	38.9-54.6
EV195-01004507	38.9-54.6
EV195-01004514	38.9-54.6
EV195-01004515	38.9-54.6
EV195-01004516	38.9-54.6
EV195-01004523	38.9-54.6
EV195-01004524	38.9-54.6
EV195-01004525	38.9-54.6
EV195-01004532	38.9-54.6
EV195-01004533	38.9-54.6
EV195-01004534	38.9-54.6
EV195-01004541	38.9-54.6
EV195-01004542	38.9-54.6
EV195-01004543	38.9-54.6
EV195-01004550	38.9-54.6
EV195-01004551	38.9-54.6
EV195-01004552	38.9-54.6
EV195-01004559	38.9-54.6
EV195-01004560	38.9-54.6
EV195-01004561	38.9-54.6
EV195-01004568	38.9-54.6
EV195-01004569	38.9-54.6
EV195-01004570	38.9-54.6
EV195-01004577	38.9-54.6
EV195-01004578	38.9-54.6
EV195-01004579	38.9-54.6
EV195-01004587	38.9-54.6
EV195-01004596	38.9-54.6
EV195-01004605	38.9-54.6
EV195-01004614	38.9-54.6
EV195-01030005	25.4-41.1/52.6-68.3
EV195-01004302	25.4-41.1/52.6-68.3
EV195-01004303	25.4-41.1/52.6-68.3
EV195-01004304	25.4-41.1/52.6-68.3
EV195-99000034	25.4-41.1/52.6-68.3
EV195-99000035	25.4-41.1/52.6-68.3
EV195-01004309	25.4-41.1/52.6-68.3
EV195-99000040	25.4-41.1/52.6-68.3
EV195-99000041	25.4-41.1/52.6-68.3
EV195-01004312	25.4-41.1/52.6-68.3
EV195-01000034	25.4-41.1/52.6-68.3
EV195-01004314	25.4-41.1/52.6-68.3
EV195-01004320	25.4-41.1/52.6-68.3
EV195-01004321	25.4-41.1/52.6-68.3
EV195-01004322	25.4-41.1/52.6-68.3
EV195-01004329	25.4-41.1/52.6-68.3
EV195-01004330	25.4-41.1/52.6-68.3
EV195-01004331	25.4-41.1/52.6-68.3
EV195-01004338	25.4-41.1/52.6-68.3
EV195-01000006	25.4-41.1/52.6-68.3
EV195-01004339	25.4-41.1/52.6-68.3
EV195-01004346	25.4-41.1/52.6-68.3
EV195-01004347	25.4-41.1/52.6-68.3
EV195-01004348	25.4-41.1/52.6-68.3
EV195-01004355	25.4-41.1/52.6-68.3
EV195-01004356	25.4-41.1/52.6-68.3
EV195-01004357	25.4-41.1/52.6-68.3
EV195-01004364	25.4-41.1/52.6-68.3
EV195-01004365	25.4-41.1/52.6-68.3
EV195-01004366	25.4-41.1/52.6-68.3
EV195-01004373	25.4-41.1/52.6-68.3
EV195-01004374	25.4-41.1/52.6-68.3
EV195-01004375	25.4-41.1/52.6-68.3
EV195-01004382	25.4-41.1/52.6-68.3
EV195-01004383	25.4-41.1/52.6-68.3
EV195-01004384	25.4-41.1/52.6-68.3
EV195-01004391	25.4-41.1/52.6-68.3
EV195-01004392	25.4-41.1/52.6-68.3
EV195-01004393	25.4-41.1/52.6-68.3
EV195-99000046	25.4-41.1/52.6-68.3
EV195-99000047	25.4-41.1/52.6-68.3
EV195-01004398	25.4-41.1/52.6-68.3
EV195-01004403	25.4-41.1/52.6-68.3
EV195-01004404	25.4-41.1/52.6-68.3
EV195-01004405	25.4-41.1/52.6-68.3
EV195-01004413	25.4-41.1/52.6-68.3
EV195-01004422	25.4-41.1/52.6-68.3
EV195-01004431	25.4-41.1/52.6-68.3
EV195-01004440	25.4-41.1/52.6-68.3
EV195-01004448	25.4-41.1/52.6-68.3
EV195-01004449	25.4-41.1/52.6-68.3
EV195-01004450	25.4-41.1/52.6-68.3
EV195-01004457	25.4-41.1/52.6-68.3
EV195-01004458	25.4-41.1/52.6-68.3
EV195-01004459	25.4-41.1/52.6-68.3
EV195-01004466	25.4-41.1/52.6-68.3
EV195-01004467	25.4-41.1/52.6-68.3
EV195-01004468	25.4-41.1/52.6-68.3
EV195-01004475	25.4-41.1/52.6-68.3
EV195-01004476	25.4-41.1/52.6-68.3
EV195-01004477	25.4-41.1/52.6-68.3
EV195-01004484	25.4-41.1/52.6-68.3
EV195-01004485	25.4-41.1/52.6-68.3
EV195-01004486	25.4-41.1/52.6-68.3
EV195-01004493	25.4-41.1/52.6-68.3
EV195-01004494	25.4-41.1/52.6-68.3
EV195-01004495	25.4-41.1/52.6-68.3
EV195-01004502	25.4-41.1/52.6-68.3
EV195-01004503	25.4-41.1/52.6-68.3
EV195-01004504	25.4-41.1/52.6-68.3
EV195-01004511	25.4-41.1/52.6-68.3
EV195-01004512	25.4-41.1/52.6-68.3
EV195-01004513	25.4-41.1/52.6-68.3
EV195-01004520	25.4-41.1/52.6-68.3
EV195-01004521	25.4-41.1/52.6-68.3
EV195-01004522	25.4-41.1/52.6-68.3
EV195-01004529	25.4-41.1/52.6-68.3
EV195-01004530	25.4-41.1/52.6-68.3
EV195-01004531	25.4-41.1/52.6-68.3
EV195-01004538	25.4-41.1/52.6-68.3
EV195-01004539	25.4-41.1/52.6-68.3
EV195-01004540	25.4-41.1/52.6-68.3
EV195-01004547	25.4-41.1/52.6-68.3
EV195-01004548	25.4-41.1/52.6-68.3
EV195-01004549	25.4-41.1/52.6-68.3
EV195-01004556	25.4-41.1/52.6-68.3
EV195-01004557	25.4-41.1/52.6-68.3
EV195-01004558	25.4-41.1/52.6-68.3
EV195-01004565	25.4-41.1/52.6-68.3
EV195-01004566	25.4-41.1/52.6-68.3
EV195-01004567	25.4-41.1/52.6-68.3
EV195-01004574	25.4-41.1/52.6-68.3
EV195-01004575	25.4-41.1/52.6-68.3
EV195-01004576	25.4-41.1/52.6-68.3
EV195-01004584	25.4-41.1/52.6-68.3
EV195-01004593	25.4-41.1/52.6-68.3
EV195-01004602	25.4-41.1/52.6-68.3
EV195-01004611	25.4-41.1/52.6-68.3

基本信息
附件信息
附件信息

稳定的预设压缩
间距调节轻松自如
工具或手动操纵
符合EN45545-3 E10标准
材料与表面处理：
锌合金，粉末喷涂或镀铬和钢，镀锌
性能详述：
最大静载荷：450N
密封说明：
使用提供的密封垫实现NEMA4和IP65
边缘密封垫参见EV276-01000001
钥匙和配件：
参见工具钥匙和压缩式门锁配件

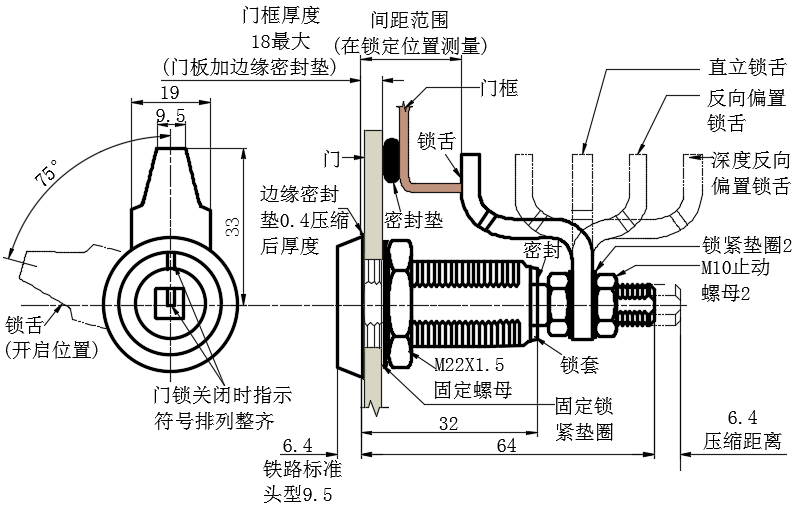

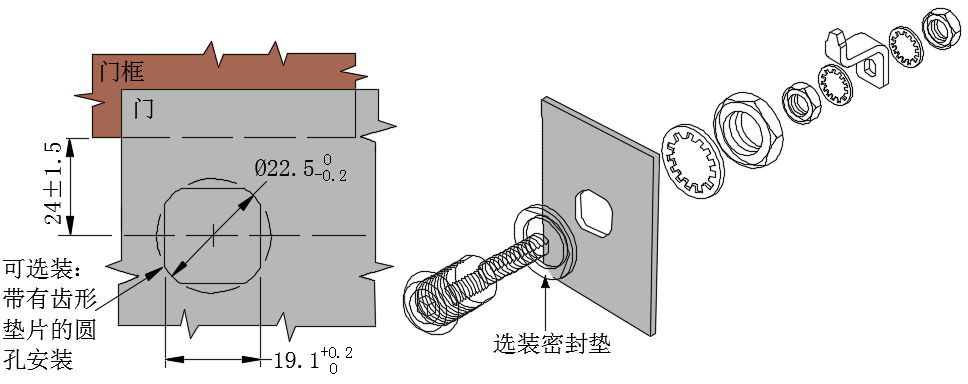

安装说明：
注意：确定锁舌位置已便手动轻松实现锁定功能

固定螺母的推荐拧紧力矩为20Nm。

压缩式门锁配件.pdf
