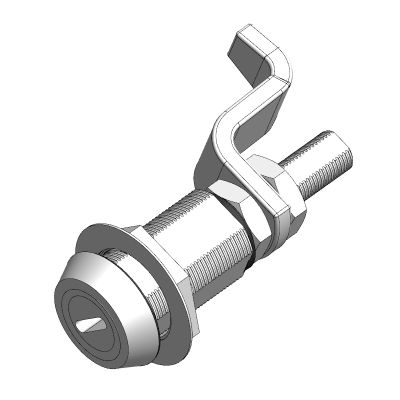

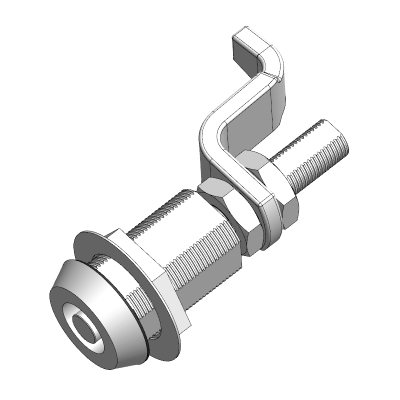

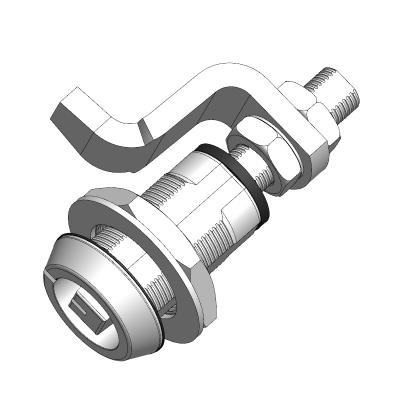

虎钳压缩式门锁01型

以上设计和拍摄图片的颜色可能和实际略有差异，仅供参考

虎钳压缩式门锁01型

产品参数

制式	公制
进入限制	无限制
锁头形式	方形锁芯
旋转方向	顺时针
锁材质	不锈钢
描述	虎钳压缩式门锁01型,

规格

SKU	规格	价格/包装
EV195-01010001	11.4-27.2/66.3-76.2
EV195-01010004	11.4-27.2/66.3-76.2
EV195-01001706	11.4-27.2/66.3-76.2
EV195-01001707	11.4-27.2/66.3-76.2
EV195-01001712	11.4-27.2/66.3-76.2
EV195-01001713	11.4-27.2/66.3-76.2
EV195-01001718	11.4-27.2/66.3-76.2
EV195-01001719	11.4-27.2/66.3-76.2
EV195-01001724	11.4-27.2/66.3-76.2
EV195-01001725	11.4-27.2/66.3-76.2
EV195-01001730	11.4-27.2/66.3-76.2
EV195-01001731	11.4-27.2/66.3-76.2
EV195-01001736	11.4-27.2/66.3-76.2
EV195-01001739	11.4-27.2/66.3-76.2
EV195-01001740	11.4-27.2/66.3-76.2
EV195-01001745	11.4-27.2/66.3-76.2
EV195-01001747	11.4-27.2/66.3-76.2
EV195-01001748	11.4-27.2/66.3-76.2
EV195-01001753	11.4-27.2/66.3-76.2
EV195-01001754	11.4-27.2/66.3-76.2
EV195-01001759	11.4-27.2/66.3-76.2
EV195-01001760	11.4-27.2/66.3-76.2
EV195-01001765	11.4-27.2/66.3-76.2
EV195-01001766	11.4-27.2/66.3-76.2
EV195-01001771	11.4-27.2/66.3-76.2
EV195-01001772	11.4-27.2/66.3-76.2
EV195-01001777	11.4-27.2/66.3-76.2
EV195-01001778	11.4-27.2/66.3-76.2
EV195-01001783	11.4-27.2/66.3-76.2
EV195-01001784	11.4-27.2/66.3-76.2
EV195-01001789	11.4-27.2/66.3-76.2
EV195-01001790	11.4-27.2/66.3-76.2
EV195-01001795	11.4-27.2/66.3-76.2
EV195-01001796	11.4-27.2/66.3-76.2
EV195-01001801	11.4-27.2/66.3-76.2
EV195-01001802	11.4-27.2/66.3-76.2
EV195-01010003	38.9-54.6
EV195-01010006	38.9-54.6
EV195-01001710	38.9-54.6
EV195-01001711	38.9-54.6
EV195-01001716	38.9-54.6
EV195-01001717	38.9-54.6
EV195-01001722	38.9-54.6
EV195-01001723	38.9-54.6
EV195-01001728	38.9-54.6
EV195-01001729	38.9-54.6
EV195-01001734	38.9-54.6
EV195-01001735	38.9-54.6
EV195-01001738	38.9-54.6
EV195-01001743	38.9-54.6
EV195-01001744	38.9-54.6
EV195-01000015	38.9-54.6
EV195-01001751	38.9-54.6
EV195-01001752	38.9-54.6
EV195-01001757	38.9-54.6
EV195-01001758	38.9-54.6
EV195-01001763	38.9-54.6
EV195-01001764	38.9-54.6
EV195-01001769	38.9-54.6
EV195-01001770	38.9-54.6
EV195-01001775	38.9-54.6
EV195-01001776	38.9-54.6
EV195-01001781	38.9-54.6
EV195-01001782	38.9-54.6
EV195-01001787	38.9-54.6
EV195-01001788	38.9-54.6
EV195-01001793	38.9-54.6
EV195-01001794	38.9-54.6
EV195-01001799	38.9-54.6
EV195-01001800	38.9-54.6
EV195-01001805	38.9-54.6
EV195-01001806	38.9-54.6
EV195-01010002	25.4-41.1/52.6-68.3
EV195-01010005	25.4-41.1/52.6-68.3
EV195-01001708	25.4-41.1/52.6-68.3
EV195-01001709	25.4-41.1/52.6-68.3
EV195-01001714	25.4-41.1/52.6-68.3
EV195-01001715	25.4-41.1/52.6-68.3
EV195-01001720	25.4-41.1/52.6-68.3
EV195-01001721	25.4-41.1/52.6-68.3
EV195-01001726	25.4-41.1/52.6-68.3
EV195-01001727	25.4-41.1/52.6-68.3
EV195-01001732	25.4-41.1/52.6-68.3
EV195-01001733	25.4-41.1/52.6-68.3
EV195-01001737	25.4-41.1/52.6-68.3
EV195-01001741	25.4-41.1/52.6-68.3
EV195-01001742	25.4-41.1/52.6-68.3
EV195-01001746	25.4-41.1/52.6-68.3
EV195-01001749	25.4-41.1/52.6-68.3
EV195-01001750	25.4-41.1/52.6-68.3
EV195-01001755	25.4-41.1/52.6-68.3
EV195-01001756	25.4-41.1/52.6-68.3
EV195-01001761	25.4-41.1/52.6-68.3
EV195-01001762	25.4-41.1/52.6-68.3
EV195-01001767	25.4-41.1/52.6-68.3
EV195-01001768	25.4-41.1/52.6-68.3
EV195-01001773	25.4-41.1/52.6-68.3
EV195-01001774	25.4-41.1/52.6-68.3
EV195-01001779	25.4-41.1/52.6-68.3
EV195-01001780	25.4-41.1/52.6-68.3
EV195-01001785	25.4-41.1/52.6-68.3
EV195-01001786	25.4-41.1/52.6-68.3
EV195-01001791	25.4-41.1/52.6-68.3
EV195-01001792	25.4-41.1/52.6-68.3
EV195-01001797	25.4-41.1/52.6-68.3
EV195-01001798	25.4-41.1/52.6-68.3
EV195-01001803	25.4-41.1/52.6-68.3
EV195-01001804	25.4-41.1/52.6-68.3

基本信息
附件信息

稳定的预设压缩
间距调节轻松自如
工具或手动操纵
符合EN45545-3 E60标准
材料与表面处理:
不锈钢304和316
性能详述:
最大静载荷：556N
密封说明:
使用提供的密封垫实现NEMA4和IP65
钥匙和配件:
参见工具钥匙和压缩式门锁配件

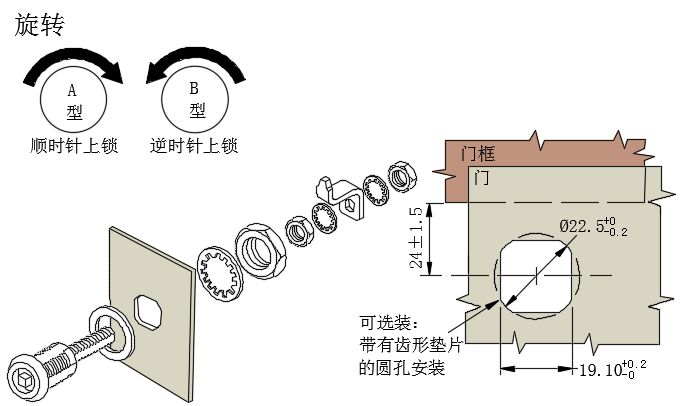

安装说明:
注意：确定锁舌位置以便于用手来轻松实现锁定功能。

固定螺母的推荐拧紧力矩为20Nm。
