钢制螺纹油塞

以上设计和拍摄图片的颜色可能和实际略有差异，仅供参考

钢制螺纹油塞

产品参数

制式	公制
材质	钢制
描述	钢制螺纹油塞,

规格

SKU	规格	价格/包装
EV172-03000041	G1/8*8.0
EV172-03000058	G1/8*8.0
EV172-03000078	G1/8*8.0
EV172-03000071	G1/4*12.0
EV172-03000077	G1/4*12.0
EV172-03000086	G1/4*12.0
EV172-03000040	G3/8*12.0
EV172-03000042	G3/8*12.0
EV172-03000080	G3/8*12.0
EV172-03000048	G1/2*14.0
EV172-03000090	G1/2*14.0
EV172-03000102	G1/2*14.0
EV172-03000067	G3/4*16.0
EV172-03000083	G3/4*16.0
EV172-03000089	G3/4*16.0
EV172-03000049	G1*16.0
EV172-03000069	G1*16.0
EV172-03000075	G1*16.0
EV172-03000066	G1-1/4*16.0
EV172-03000079	G1-1/4*16.0
EV172-03000062	G1-1/2*16.0
EV172-03000072	G1-1/2*16.0
EV172-03000091	G1-1/2*16.0
EV172-03000074	M8X1*8.0
EV172-03000100	M8X1*8.0
EV172-03000050	M10X1*8.0
EV172-03000060	M10X1*8.0
EV172-03000092	M10X1*8.0
EV172-03000045	M12X1.5*12.0
EV172-03000087	M12X1.5*12.0
EV172-03000093	M12X1.5*12.0
EV172-03000063	M14X1.5*12.0
EV172-03000073	M14X1.5*12.0
EV172-03000076	M14X1.5*12.0
EV172-03000038	M16X1.5*12.0
EV172-03000051	M16X1.5*12.0
EV172-03000101	M16X1.5*12.0
EV172-03000043	M18X1.5*12.0
EV172-03000064	M18X1.5*12.0
EV172-03000046	M20X1.5*14.0
EV172-03000059	M20X1.5*14.0
EV172-03000096	M20X1.5*14.0
EV172-03000053	M22X1.5*14.0
EV172-03000056	M22X1.5*14.0
EV172-03000082	M22X1.5*14.0
EV172-03000084	M24X1.5*14.0
EV172-03000098	M24X1.5*14.0
EV172-03000099	M24X1.5*14.0
EV172-03000054	M26X1.5*16.0
EV172-03000085	M26X1.5*16.0
EV172-03000103	M26X1.5*16.0
EV172-03000044	M27X2*16.0
EV172-03000068	M27X2*16.0
EV172-03000081	M27X2*16.0
EV172-03000052	M30X1.5*16.0
EV172-03000061	M30X1.5*16.0
EV172-03000095	M30X1.5*16.0
EV172-03000057	M33X2*16.0
EV172-03000094	M33X2*16.0
EV172-03000097	M33X2*16.0
EV172-03000039	M42X2*16.0
EV172-03000047	M42X2*16.0
EV172-03000065	M42X2*16.0
EV172-03000055	M48X2*16.0
EV172-03000070	M48X2*16.0
EV172-03000088	M48X2*16.0

基本信息
附件信息

类型：

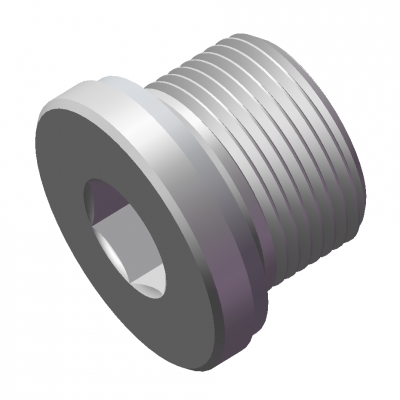

G1	不带垫圈

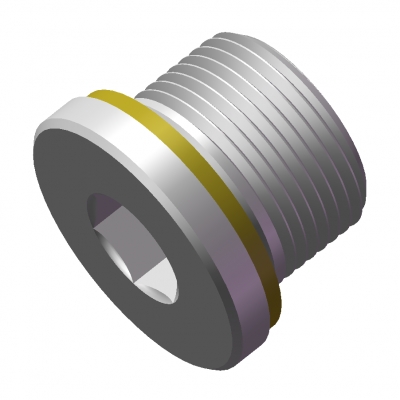

G2	铜制垫圈
G3	带铝制垫圈
本体:钢制
抗拉强度等级5.8
超声波与张力测试
镀锌，纳米钝化处理

信息:
G2和G3的对应垫圈(参见金属垫圈), G1(扁平垫圈)。

可按需提供：
不锈钢款式
