以上设计和拍摄图片的颜色可能和实际略有差异，仅供参考

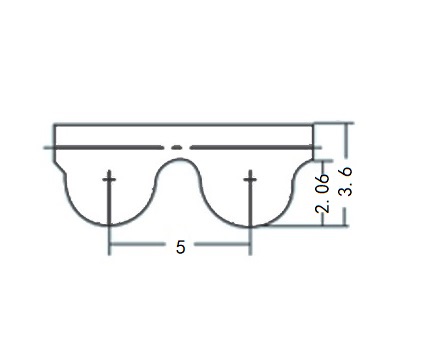

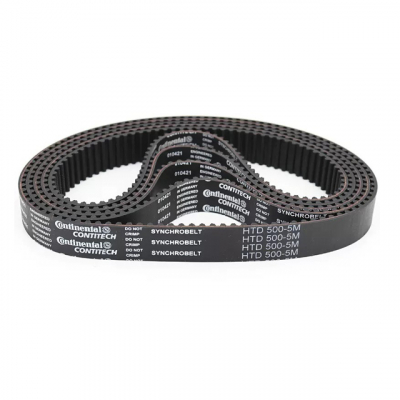

圆弧齿同步带HTD-5M型
产品参数
| 制式 | 公制 |
| 品牌 | 马牌(Continental) |
| 皮带宽度 | 30mm |
| 皮带节线长度(mm) | 295.0 |
| 皮带齿数 | 505.0 |
| 皮带齿形 | 圆弧齿 |
| 皮带系列(齿距mm) | HTD-5M(5mm) |
| 皮带材质 | 橡胶 |
| 皮带种类 | 标准 |
| 单双面齿 | 单面齿 |
| 皮带形状 | 闭合带 |
| 描述 | 制式是公制,品牌是马牌(Continental),皮带形状是闭合带,单双面齿是单面齿,皮带种类是标准,皮带材质是橡胶,皮带系列(齿距mm)是HTD-5M(5mm)),皮带齿形是圆弧齿,皮带宽度是10mm,20mm,30mm,皮带齿数59.0,60.0,62.0,64.0,66.0,68.0,70.0,72.0,74.0,75.0,79.0,80.0,82.0,85.0,90.0,92.0,94.0,96.0,98.0,100.0,104.0,106.0,108.0,110.0,112.0,115.0,116.0,118.0,120.0,122.0,124.0,126.0,128.0,129.0,130.0,133.0,134.0,136.0,139.0,142.0,144.0,145.0,148.0,150.0,153.0,154.0,156.0,160.0,162.0,166.0,170.0,172.0,174.0,178.0,180.0,182.0,184.0,188.0,190.0,192.0,195.0,196.0,200.0,204.0,210.0,216.0,220.0,224.0,227.0,229.0,232.0,235.0,237.0,240.0,245.0,250.0,254.0,258.0,260.0,280.0,291.0,300.0,338.0,400.0,505.0,皮带节线长度(mm)是295.0,300.0,310.0,320.0,330.0,340.0,350.0,360.0,370.0,375.0,395.0,400.0,410.0,425.0,450.0,460.0,470.0,480.0,490.0,500.0,520.0,530.0,540.0,550.0,560.0,575.0,580.0,590.0,600.0,610.0,620.0,630.0,640.0,645.0,650.0,665.0,670.0,680.0,695.0,710.0,720.0,725.0,740.0,750.0,765.0,770.0,780.0,800.0,810.0,830.0,850.0,860.0,870.0,890.0,900.0,910.0,920.0,940.0,950.0,960.0,975.0,980.0,1000.0,1020.0,1050.0,1080.0,1100.0,1120.0,1135.0,1145.0,1160.0,1175.0,1185.0,1200.0,1225.0,1250.0,1270.0,1290.0,1300.0,1400.0,1455.0,1500.0,1690.0,2000.0,2525.0 |
