虎钳压缩式门锁10型

以上设计和拍摄图片的颜色可能和实际略有差异，仅供参考

虎钳压缩式门锁10型

产品参数

制式	公制
进入限制	无限制
锁头形式	T型手柄
表面处理	镀铬
旋转方向	顺时针
锁材质	锌合金
描述	虎钳压缩式门锁10型,

规格

SKU	规格	价格/包装
EV195-01009160	7.9-23.6/62.7-76.2
EV195-99000050	7.9-23.6/62.7-76.2
EV195-01009161	7.9-23.6/62.7-76.2
EV195-01009166	7.9-23.6/62.7-76.2
EV195-01009167	7.9-23.6/62.7-76.2
EV195-01009168	7.9-23.6/62.7-76.2
EV195-01009175	7.9-23.6/62.7-76.2
EV195-01009176	7.9-23.6/62.7-76.2
EV195-01009177	7.9-23.6/62.7-76.2
EV195-01009184	7.9-23.6/62.7-76.2
EV195-01009185	7.9-23.6/62.7-76.2
EV195-01009186	7.9-23.6/62.7-76.2
EV195-01009193	7.9-23.6/62.7-76.2
EV195-01009194	7.9-23.6/62.7-76.2
EV195-01009195	7.9-23.6/62.7-76.2
EV195-01009202	7.9-23.6/62.7-76.2
EV195-01009203	7.9-23.6/62.7-76.2
EV195-01009204	7.9-23.6/62.7-76.2
EV195-01009211	7.9-23.6/62.7-76.2
EV195-99000053	7.9-23.6/62.7-76.2
EV195-01009212	7.9-23.6/62.7-76.2
EV195-01009217	7.9-23.6/62.7-76.2
EV195-01009218	7.9-23.6/62.7-76.2
EV195-01009219	7.9-23.6/62.7-76.2
EV195-01009226	7.9-23.6/62.7-76.2
EV195-01009227	7.9-23.6/62.7-76.2
EV195-01009228	7.9-23.6/62.7-76.2
EV195-01009235	7.9-23.6/62.7-76.2
EV195-01009236	7.9-23.6/62.7-76.2
EV195-01009237	7.9-23.6/62.7-76.2
EV195-01009244	7.9-23.6/62.7-76.2
EV195-01009245	7.9-23.6/62.7-76.2
EV195-01009246	7.9-23.6/62.7-76.2
EV195-01009253	7.9-23.6/62.7-76.2
EV195-01009254	7.9-23.6/62.7-76.2
EV195-01009255	7.9-23.6/62.7-76.2
EV195-01009262	7.9-23.6/62.7-76.2
EV195-01009263	7.9-23.6/62.7-76.2
EV195-01009264	7.9-23.6/62.7-76.2
EV195-01009271	7.9-23.6/62.7-76.2
EV195-01009272	7.9-23.6/62.7-76.2
EV195-01009273	7.9-23.6/62.7-76.2
EV195-01009164	35.3-51
EV195-99000052	35.3-51
EV195-01009165	35.3-51
EV195-01009172	35.3-51
EV195-01009173	35.3-51
EV195-01009174	35.3-51
EV195-01009181	35.3-51
EV195-01009182	35.3-51
EV195-01009183	35.3-51
EV195-01009190	35.3-51
EV195-01009191	35.3-51
EV195-01009192	35.3-51
EV195-01009199	35.3-51
EV195-01009200	35.3-51
EV195-01009201	35.3-51
EV195-01009208	35.3-51
EV195-01009209	35.3-51
EV195-01009210	35.3-51
EV195-01009215	35.3-51
EV195-99000055	35.3-51
EV195-01009216	35.3-51
EV195-01009223	35.3-51
EV195-01009224	35.3-51
EV195-01009225	35.3-51
EV195-01009232	35.3-51
EV195-01009233	35.3-51
EV195-01009234	35.3-51
EV195-01009241	35.3-51
EV195-01009242	35.3-51
EV195-01009243	35.3-51
EV195-01009250	35.3-51
EV195-01009251	35.3-51
EV195-01009252	35.3-51
EV195-01009259	35.3-51
EV195-01009260	35.3-51
EV195-01009261	35.3-51
EV195-01009268	35.3-51
EV195-01009269	35.3-51
EV195-01009270	35.3-51
EV195-01009277	35.3-51
EV195-01009278	35.3-51
EV195-01009279	35.3-51
EV195-01009162	21.8-37.3/49-64.8
EV195-99000051	21.8-37.3/49-64.8
EV195-01009163	21.8-37.3/49-64.8
EV195-01009169	21.8-37.3/49-64.8
EV195-01009170	21.8-37.3/49-64.8
EV195-01009171	21.8-37.3/49-64.8
EV195-01009178	21.8-37.3/49-64.8
EV195-01009179	21.8-37.3/49-64.8
EV195-01009180	21.8-37.3/49-64.8
EV195-01009187	21.8-37.3/49-64.8
EV195-01009188	21.8-37.3/49-64.8
EV195-01009189	21.8-37.3/49-64.8
EV195-01009196	21.8-37.3/49-64.8
EV195-01009197	21.8-37.3/49-64.8
EV195-01009198	21.8-37.3/49-64.8
EV195-01009205	21.8-37.3/49-64.8
EV195-01009206	21.8-37.3/49-64.8
EV195-01009207	21.8-37.3/49-64.8
EV195-01009213	21.8-37.3/49-64.8
EV195-99000054	21.8-37.3/49-64.8
EV195-01009214	21.8-37.3/49-64.8
EV195-01009220	21.8-37.3/49-64.8
EV195-01009221	21.8-37.3/49-64.8
EV195-01009222	21.8-37.3/49-64.8
EV195-01009229	21.8-37.3/49-64.8
EV195-01009230	21.8-37.3/49-64.8
EV195-01009231	21.8-37.3/49-64.8
EV195-01009238	21.8-37.3/49-64.8
EV195-01009239	21.8-37.3/49-64.8
EV195-01009240	21.8-37.3/49-64.8
EV195-01009247	21.8-37.3/49-64.8
EV195-01009248	21.8-37.3/49-64.8
EV195-01009249	21.8-37.3/49-64.8
EV195-01009256	21.8-37.3/49-64.8
EV195-01009257	21.8-37.3/49-64.8
EV195-01009258	21.8-37.3/49-64.8
EV195-01009265	21.8-37.3/49-64.8
EV195-01009266	21.8-37.3/49-64.8
EV195-01009267	21.8-37.3/49-64.8
EV195-01009274	21.8-37.3/49-64.8
EV195-01009275	21.8-37.3/49-64.8
EV195-01009276	21.8-37.3/49-64.8

基本信息
附件信息

稳定的预设压缩
间距调节轻松自如
材料与表面处理:
锌合金，粉末喷涂或镀铬和钢，镀锌
性能详述:
最大静载荷：450N

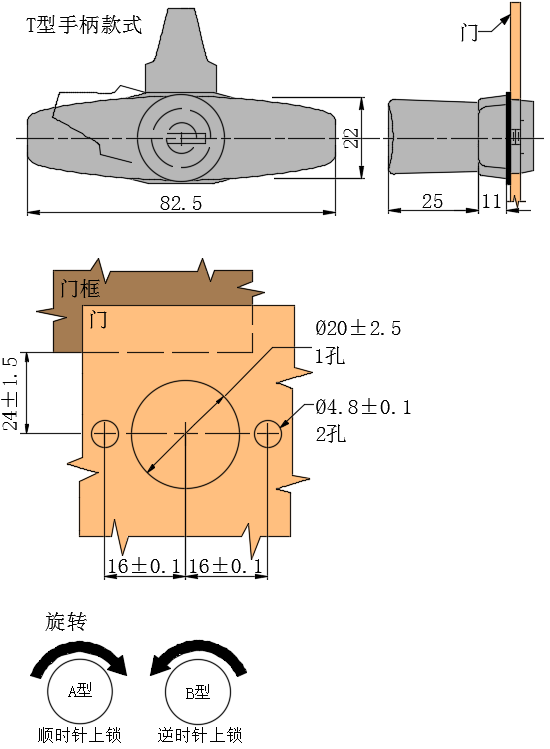

安装说明:
若门板厚度超过4，请使用以下公式计算螺钉长度：门板厚度+6

钥匙和配件:
参见工具钥匙和压缩式门锁配件

压缩式门锁配件.pdf
