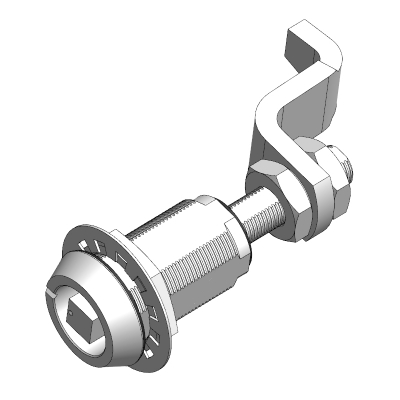

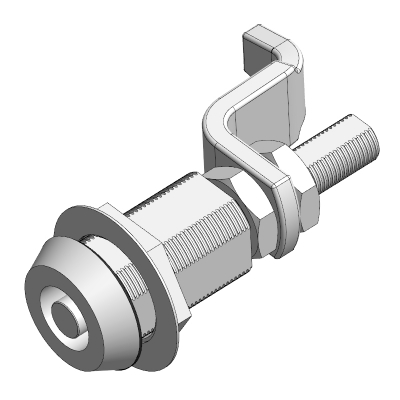

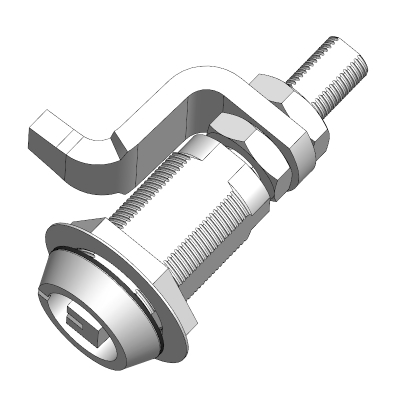

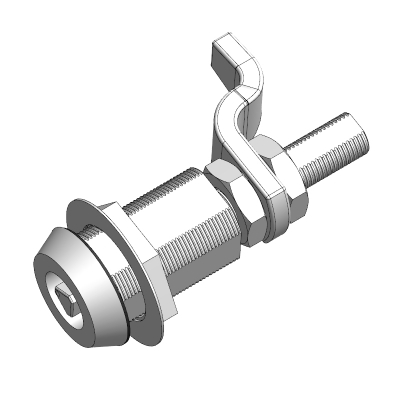

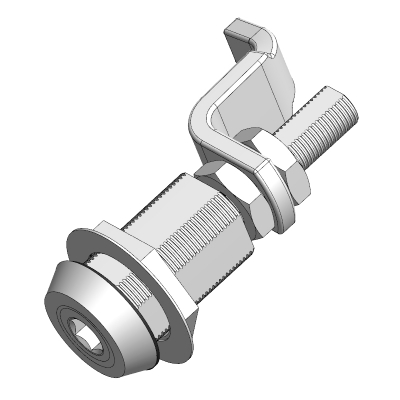

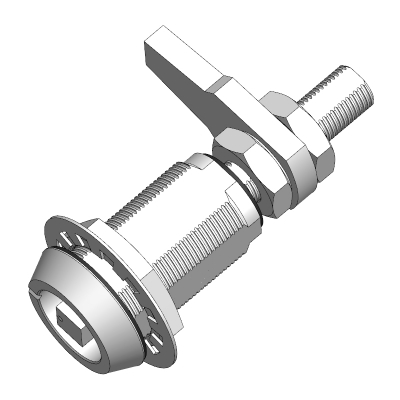

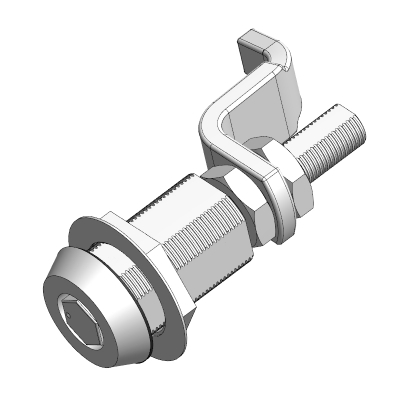

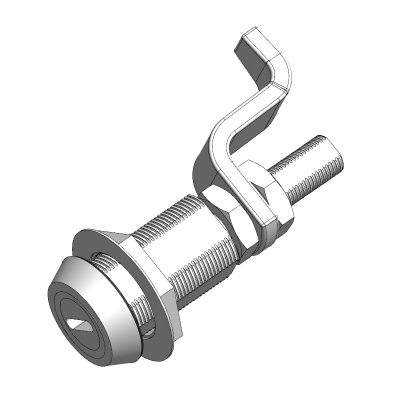

虎钳压缩式门锁07型

以上设计和拍摄图片的颜色可能和实际略有差异，仅供参考

虎钳压缩式门锁07型

产品参数

制式	公制
进入限制	工具

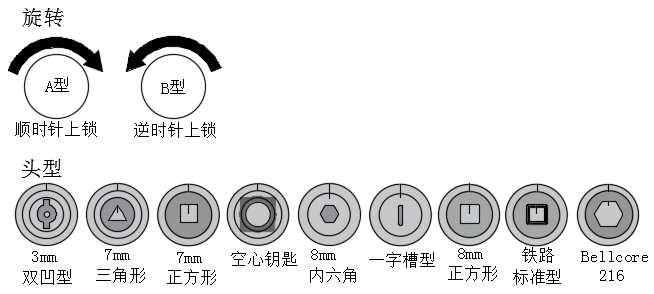

锁头形式	Bellcore216
旋转方向	顺时针
锁材质	不锈钢
描述	虎钳压缩式门锁07型,

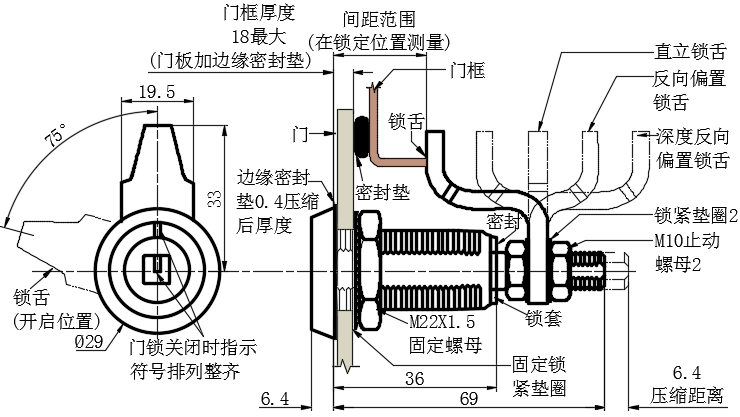

规格

SKU	规格	价格/包装
EV195-01003368	16.4-32.2/71.3-81.2
EV195-01003371	16.4-32.2/71.3-81.2
EV195-01003374	16.4-32.2/71.3-81.2
EV195-01003377	16.4-32.2/71.3-81.2
EV195-01003380	16.4-32.2/71.3-81.2
EV195-01000009	16.4-32.2/71.3-81.2
EV195-01003384	16.4-32.2/71.3-81.2
EV195-01000010	16.4-32.2/71.3-81.2
EV195-01003388	16.4-32.2/71.3-81.2
EV195-01003391	16.4-32.2/71.3-81.2
EV195-01003394	16.4-32.2/71.3-81.2
EV195-01003397	16.4-32.2/71.3-81.2
EV195-01003400	16.4-32.2/71.3-81.2
EV195-01003403	16.4-32.2/71.3-81.2
EV195-01003406	16.4-32.2/71.3-81.2
EV195-01003409	16.4-32.2/71.3-81.2
EV195-01003412	16.4-32.2/71.3-81.2
EV195-01003415	16.4-32.2/71.3-81.2
EV195-01003370	43.9-59.6
EV195-01003373	43.9-59.6
EV195-01003376	43.9-59.6
EV195-01003379	43.9-59.6
EV195-01003382	43.9-59.6
EV195-01000007	43.9-59.6
EV195-01003386	43.9-59.6
EV195-01000002	43.9-59.6
EV195-01003390	43.9-59.6
EV195-01003393	43.9-59.6
EV195-01003396	43.9-59.6
EV195-01003399	43.9-59.6
EV195-01003402	43.9-59.6
EV195-01003405	43.9-59.6
EV195-01003408	43.9-59.6
EV195-01003411	43.9-59.6
EV195-01003414	43.9-59.6
EV195-01003417	43.9-59.6
EV195-01003369	30.4-46.1/57.6-73.3
EV195-01003372	30.4-46.1/57.6-73.3
EV195-01003375	30.4-46.1/57.6-73.3
EV195-01003378	30.4-46.1/57.6-73.3
EV195-01003381	30.4-46.1/57.6-73.3
EV195-01003383	30.4-46.1/57.6-73.3
EV195-01003385	30.4-46.1/57.6-73.3
EV195-01003387	30.4-46.1/57.6-73.3
EV195-01003389	30.4-46.1/57.6-73.3
EV195-01003392	30.4-46.1/57.6-73.3
EV195-01003395	30.4-46.1/57.6-73.3
EV195-01003398	30.4-46.1/57.6-73.3
EV195-01003401	30.4-46.1/57.6-73.3
EV195-01003404	30.4-46.1/57.6-73.3
EV195-01003407	30.4-46.1/57.6-73.3
EV195-01003410	30.4-46.1/57.6-73.3
EV195-01003413	30.4-46.1/57.6-73.3
EV195-01003416	30.4-46.1/57.6-73.3

基本信息
附件信息

稳定的预设压缩
间距调节轻松自如
优质的表面处理和出色的防腐蚀性能
符合EN45545-3 E60标准
材料与表面处理:
不锈钢(304和316机加工)
性能详述:
最大静载荷：600N
密封说明:
使用提供的密封垫实现NEMA4和IP65
钥匙和配件:
参见工具钥匙和压缩式门锁配件

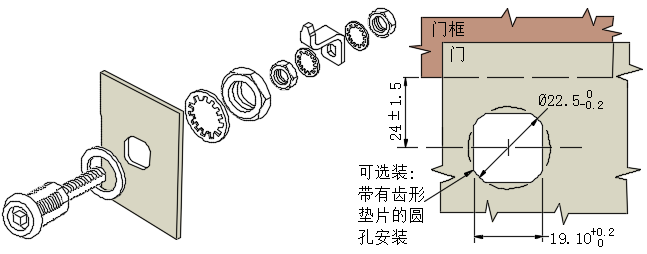

安装说明:
注意：确定锁舌位置以便于用手来轻松实现锁定功能。

固定螺母的推荐拧紧力矩为20Nm。

压缩式门锁配件.pdf
