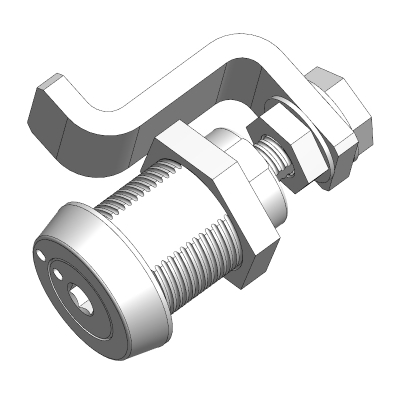

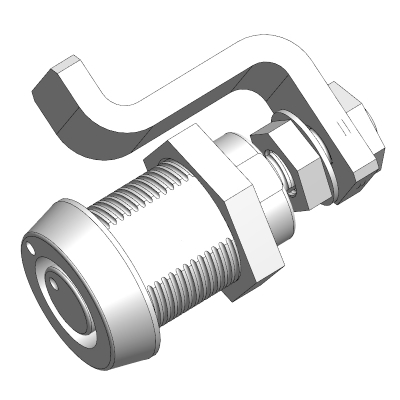

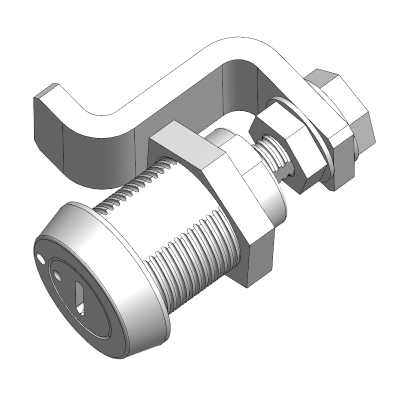

虎钳压缩式门锁06型

以上设计和拍摄图片的颜色可能和实际略有差异，仅供参考

虎钳压缩式门锁06型

产品参数

制式	公制
进入限制	无限制

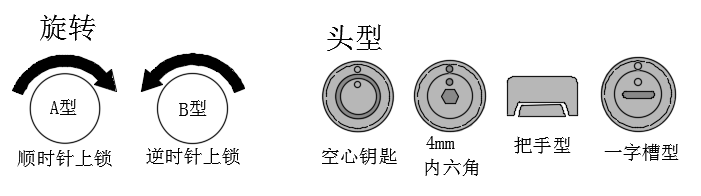

锁头形式	空心钥匙
表面处理	抛光
旋转方向	顺时针
锁材质	不锈钢
描述	虎钳压缩式门锁06型,

规格

SKU	规格	价格/包装
EV195-01003240	3.2-6.4
EV195-01003241	3.2-6.4
EV195-01003256	3.2-6.4
EV195-01003257	3.2-6.4
EV195-01003272	3.2-6.4
EV195-01003273	3.2-6.4
EV195-01003288	3.2-6.4
EV195-01003289	3.2-6.4
EV195-01003304	3.2-6.4
EV195-01003305	3.2-6.4
EV195-01003320	3.2-6.4
EV195-01003321	3.2-6.4
EV195-01003336	3.2-6.4
EV195-01003337	3.2-6.4
EV195-01003352	3.2-6.4
EV195-01003353	3.2-6.4
EV195-01003242	6.4-9.5
EV195-01003243	6.4-9.5
EV195-01003258	6.4-9.5
EV195-01003259	6.4-9.5
EV195-01003274	6.4-9.5
EV195-01003275	6.4-9.5
EV195-01003290	6.4-9.5
EV195-01003291	6.4-9.5
EV195-01003306	6.4-9.5
EV195-01003307	6.4-9.5
EV195-01003322	6.4-9.5
EV195-01003323	6.4-9.5
EV195-01003338	6.4-9.5
EV195-01003339	6.4-9.5
EV195-01003354	6.4-9.5
EV195-01003355	6.4-9.5
EV195-01003244	9.5-12.7
EV195-01003245	9.5-12.7
EV195-01003260	9.5-12.7
EV195-01003261	9.5-12.7
EV195-01003276	9.5-12.7
EV195-01003277	9.5-12.7
EV195-01003292	9.5-12.7
EV195-01003293	9.5-12.7
EV195-01003308	9.5-12.7
EV195-01003309	9.5-12.7
EV195-01003324	9.5-12.7
EV195-01003325	9.5-12.7
EV195-01003340	9.5-12.7
EV195-01003341	9.5-12.7
EV195-01003356	9.5-12.7
EV195-01003357	9.5-12.7
EV195-01003246	12.7-15.9
EV195-01003247	12.7-15.9
EV195-01003262	12.7-15.9
EV195-01003263	12.7-15.9
EV195-01003278	12.7-15.9
EV195-01003279	12.7-15.9
EV195-01003294	12.7-15.9
EV195-01003295	12.7-15.9
EV195-01003310	12.7-15.9
EV195-01003311	12.7-15.9
EV195-01003326	12.7-15.9
EV195-01003327	12.7-15.9
EV195-01003342	12.7-15.9
EV195-01003343	12.7-15.9
EV195-01003358	12.7-15.9
EV195-01003359	12.7-15.9
EV195-01003248	15.9-19
EV195-01003249	15.9-19
EV195-01003264	15.9-19
EV195-01003265	15.9-19
EV195-01003280	15.9-19
EV195-01003281	15.9-19
EV195-01003296	15.9-19
EV195-01003297	15.9-19
EV195-01003312	15.9-19
EV195-01003313	15.9-19
EV195-01003328	15.9-19
EV195-01003329	15.9-19
EV195-01003344	15.9-19
EV195-01003345	15.9-19
EV195-01003360	15.9-19
EV195-01003361	15.9-19
EV195-01003250	19-22.2
EV195-01003251	19-22.2
EV195-01003266	19-22.2
EV195-01003267	19-22.2
EV195-01003282	19-22.2
EV195-01003283	19-22.2
EV195-01003298	19-22.2
EV195-01003299	19-22.2
EV195-01003314	19-22.2
EV195-01003315	19-22.2
EV195-01003330	19-22.2
EV195-01003331	19-22.2
EV195-01003346	19-22.2
EV195-01003347	19-22.2
EV195-01003362	19-22.2
EV195-01003363	19-22.2
EV195-01003252	22.2-25.4
EV195-01003253	22.2-25.4
EV195-01003268	22.2-25.4
EV195-01003269	22.2-25.4
EV195-01003284	22.2-25.4
EV195-01003285	22.2-25.4
EV195-01003300	22.2-25.4
EV195-01003301	22.2-25.4
EV195-01003316	22.2-25.4
EV195-01003317	22.2-25.4
EV195-01003332	22.2-25.4
EV195-01003333	22.2-25.4
EV195-01003348	22.2-25.4
EV195-01003349	22.2-25.4
EV195-01003364	22.2-25.4
EV195-01003365	22.2-25.4
EV195-01003254	25.4-28.6
EV195-01003255	25.4-28.6
EV195-01003270	25.4-28.6
EV195-01003271	25.4-28.6
EV195-01003286	25.4-28.6
EV195-01003287	25.4-28.6
EV195-01003302	25.4-28.6
EV195-01003303	25.4-28.6
EV195-01003318	25.4-28.6
EV195-01003319	25.4-28.6
EV195-01003334	25.4-28.6
EV195-01003335	25.4-28.6
EV195-01003350	25.4-28.6
EV195-01003351	25.4-28.6
EV195-01003366	25.4-28.6
EV195-01003367	25.4-28.6

基本信息
附件信息

稳定的预设压缩

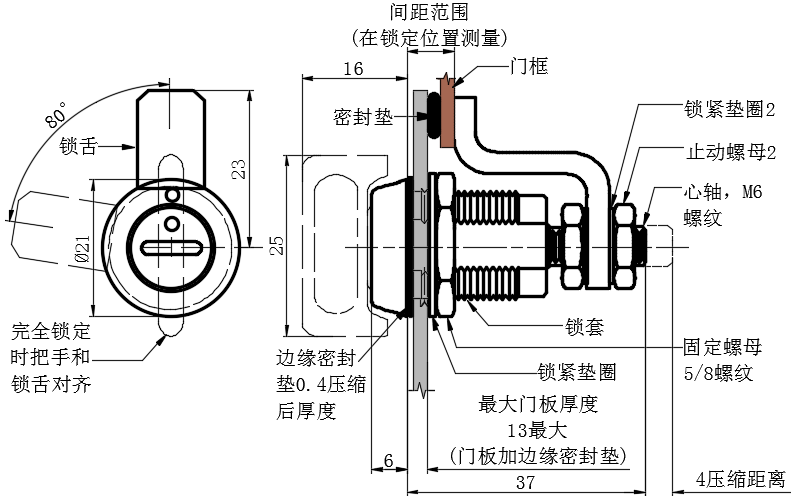

间距调节轻松自如
工具或手动操纵
符合EN45545-3 E60标准
缩减尺寸
材料与表面处理:
不锈钢304和316
性能详述:
最大静载荷：356N
密封说明:
使用提供的密封垫实现NEMA4和IP65
钥匙和配件:
参见工具钥匙和压缩式门锁配件

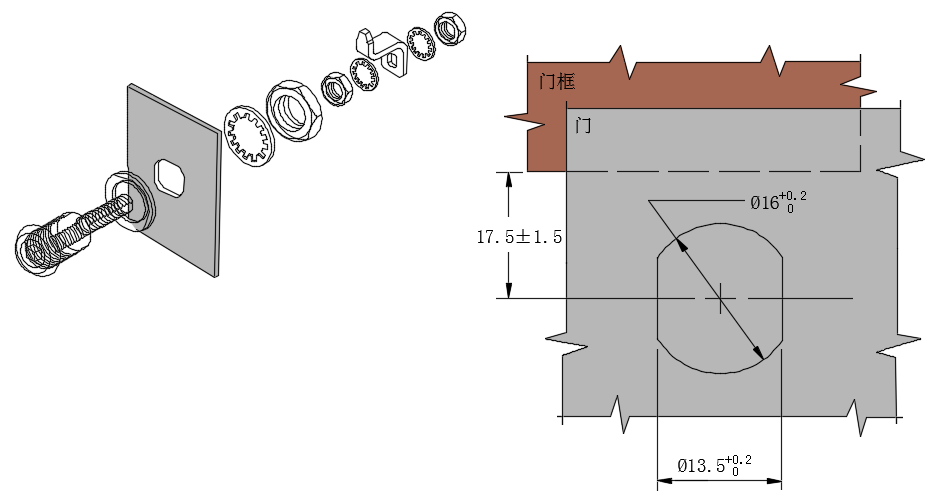

安装说明:
注意：确定锁舌位置已便手动轻松实现锁定功能
